Intonation parameters

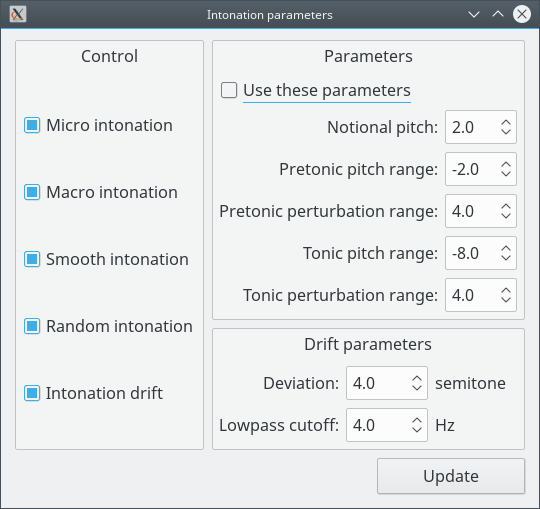

Screenshot of the intonation parameters window

This window controls how the intonation curve is generated.

Control group:

Parameters group:
If the checkbox "Use these parameters" is checked, the intonation will be generated using these parameter values instead of the parameter values from the configuration files.

Drift parameters group:
These parameters control the drift generator. The deviation value is not necessarily the maximum amplitude, because the signal is filtered by a lowpass filter. In other words, it may be necessary to set a deviation value that is higher than the desired value.
